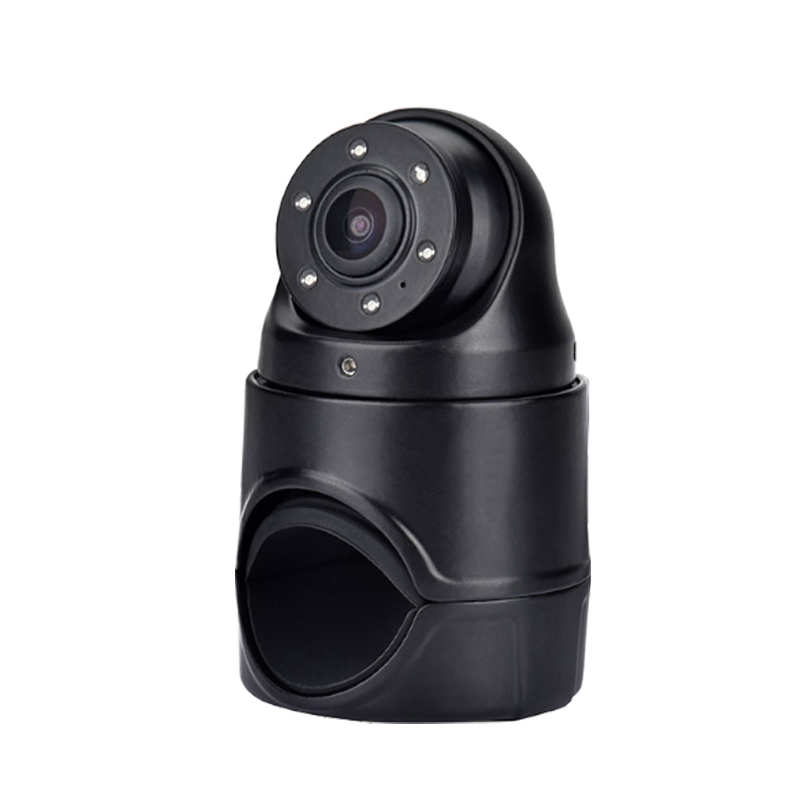

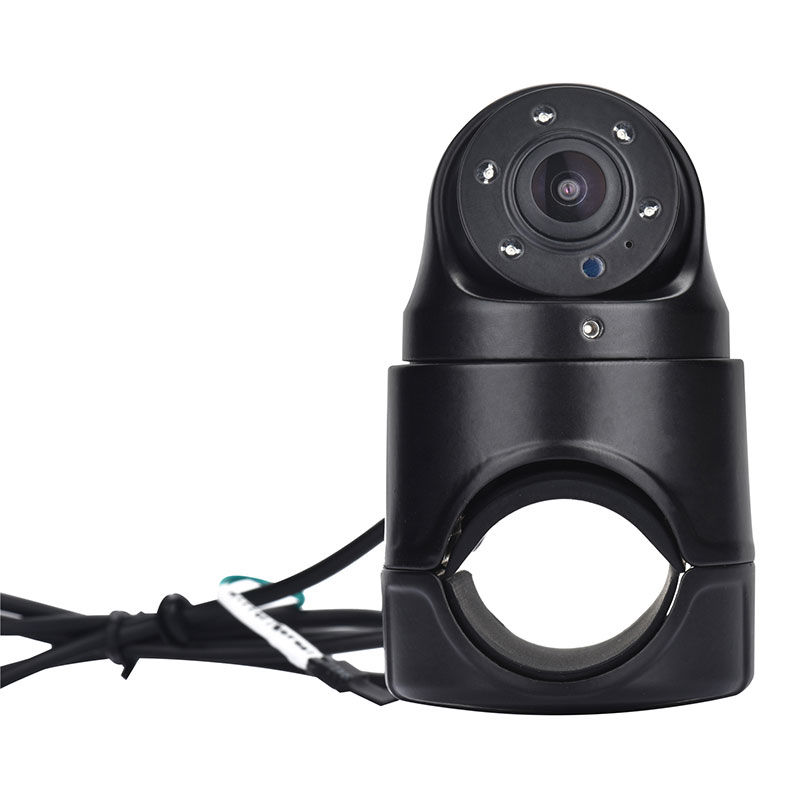

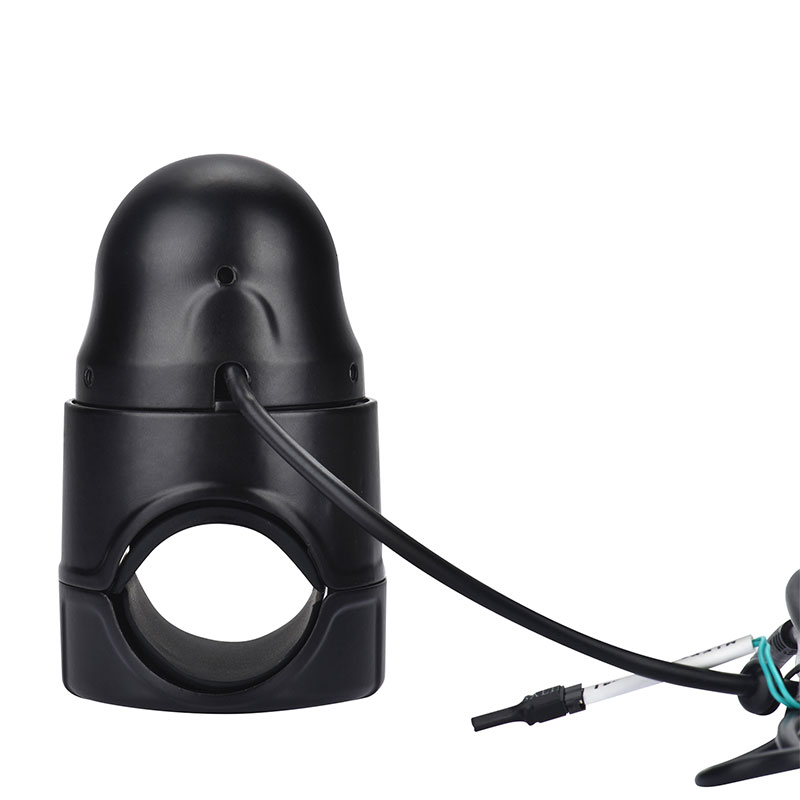

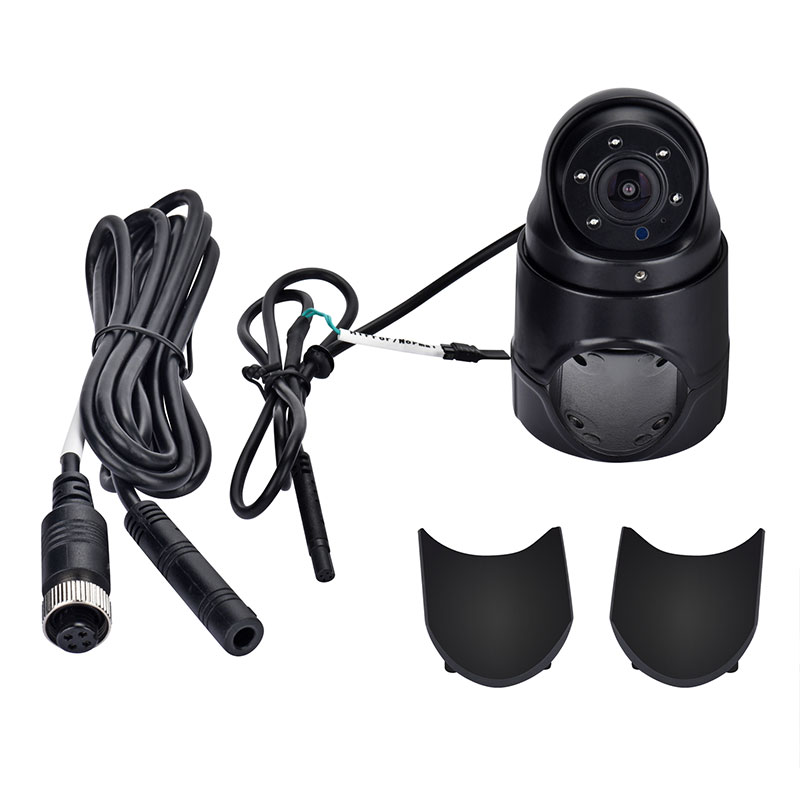

Wide Angle Wing Mirror Camera for Truck Blind Spot Monitoring with Day Night Vision

The camera supports CVBS, AHD720P and AHD1080P, allowing it to work with different vehicle monitors and camera systems. Its automatic IR-cut day and night switching and low-light performance down to 0.01 LUX with 5 LEDs make it suitable for continuous vehicle monitoring in changing light conditions.

Features

1. Wing Mirror Camera Design

Designed specifically for wing mirror / side mirror applications on commercial vehicles.

2. 120° Standard / 140° Optional

Provides a wide viewing area around the vehicle side, with a 140° option for broader coverage.

3. AHD High-Definition Video

Supports AHD720P and AHD1080P, as well as CVBS, for different vehicle camera systems.

4. Automatic Day & Night Switching

The built-in IR-cut function automatically switches between day and night modes.

5. Mirror & Non-Mirrored Image

Both mirror and non-mirrored image configurations are available according to installation requirements.

6. IP69K Protection

Designed for demanding outdoor commercial vehicle environments.

Product Parameters

Product Type: Wing Mirror AHD Camera

Image Sensor: 1/3" / 1/2.7"

Video Input: CVBS / AHD720P / AHD1080P Optional

Power Supply: DC12V (Standard), 24V (Optional)

Image: Mirror Image & Non-Mirrored Image Optional

Minimum Illumination: 0.01 LUX (5 LED)

Lens: 2.8mm

Day/Night Function: IR Cut Day and Night Switch Automatically

System: PAL/NTSC Optional

View Angle: 120° Default, 140° Optional

Waterproof Rating: IP69K

Built-in Microphone: Optional

Operating Temperature: -20℃~+75℃ (RH95% Max.)

Storage Temperature: -30℃~+85℃ (RH95% Max.)

Application

• Truck wing mirror camera
• Commercial vehicle side mirror camera
• Bus and coach camera systems
• Truck blind spot monitoring
• Vehicle side-view monitoring
• Fleet camera systems
• Heavy-duty vehicle monitoring
• Reversing and maneuvering assistance
• Multi-camera vehicle systems

FAQ

Q1: What is a Wing Mirror Camera used for?

A: It is designed for wing mirror or side mirror applications to provide additional visibility around trucks and commercial vehicles.

Q2: What is the standard viewing angle?

A: The standard viewing angle is 120°, with 140° available as an option.

Q3: Does it support AHD1080P?

A: Yes. The camera supports CVBS, AHD720P and AHD1080P.

Q4: Can the image be mirrored?

A: Yes. Mirror and non-mirrored image configurations are optional.

Q5: Does it support night vision?

A: The camera features automatic IR-cut day/night switching and 5 LED illumination, with minimum illumination specified at 0.01 LUX.

Q6: Is it suitable for trucks?

A: Yes. It is suitable for trucks, commercial vehicles, buses and other vehicle monitoring applications.
